Carbon Honeycomb Panel Nomex Ultralightweight 1220x620x3mm

Carbon Honeycomb Panels with Nomex core (industrial type C2), manufactured with precision and craftsmanship in the Netherlands. These lightweight panels offer very high specific stiffness due to the combination of carbon fiber and honeycomb core material. The surface has a matte appearance and a 3k twill weave structure. The strength distribution of the panel is 50°-50° in both longitudinal and transverse directions.

The unique cell structure of our honeycomb panels provides excellent thermal insulation properties, which helps to regulate temperature and improve energy efficiency. In addition, the sound-dampening properties of the Nomex coretechnology contribute to a quieter and more comfortable environment, making our panels ideal for noise-sensitive applications such as interior panels for aerospace, rail and marine applications. Honeycomb panels are also used in machine building and for UAVs/drones to improve performance through lightweight.

We label our products as industrial-grade quality. They are designed with a focus on mechanical performance, not on aesthetic appearance or visual-grade quality. Small pinholes or irregularities in the twill weave (pattern) can occur, which are a result of the production process and the manual finishing of the products.

Strength and Durability

Carbon honeycomb panels combine the strength and stiffness of carbon fiber composite with the light weight of the honeycomb cores. This allows you to achieve a high strength-to-weight ratio with this type of panel compared to solid panels. The high mechanical properties and low density result in a long technical lifespan in demanding industrial conditions.

Versatile Applications

From aerospace and drone industry to machine building and marine applications, our honeycomb panels excel in enviroments where high performance is required. Whether you need lightweight panels for aircraft interiors, wall panels or robust flooring solutions for naval vessels or defense vehicles, our composite honeycomb panels offer unparalleled performance and versatility.

Built-Up

Top: (1 layer) Twill Weave
Core: Nomex honeycomb cell structure
Bottom: (1 layer) Twill Weave
Fiber direction: 50% UD-0° / 50% UD-90°

Comparison to Foam Sandwich Panels

Compared to traditional foam sandwich panels, our carbon honeycomb panels with Nomex core offer notable differences:
-Lighter weight
-Higher compressive strength
-Better thermal stability and fire resistance
-Lower impact strength compared to Airex foam core
-Higher chemical resistance

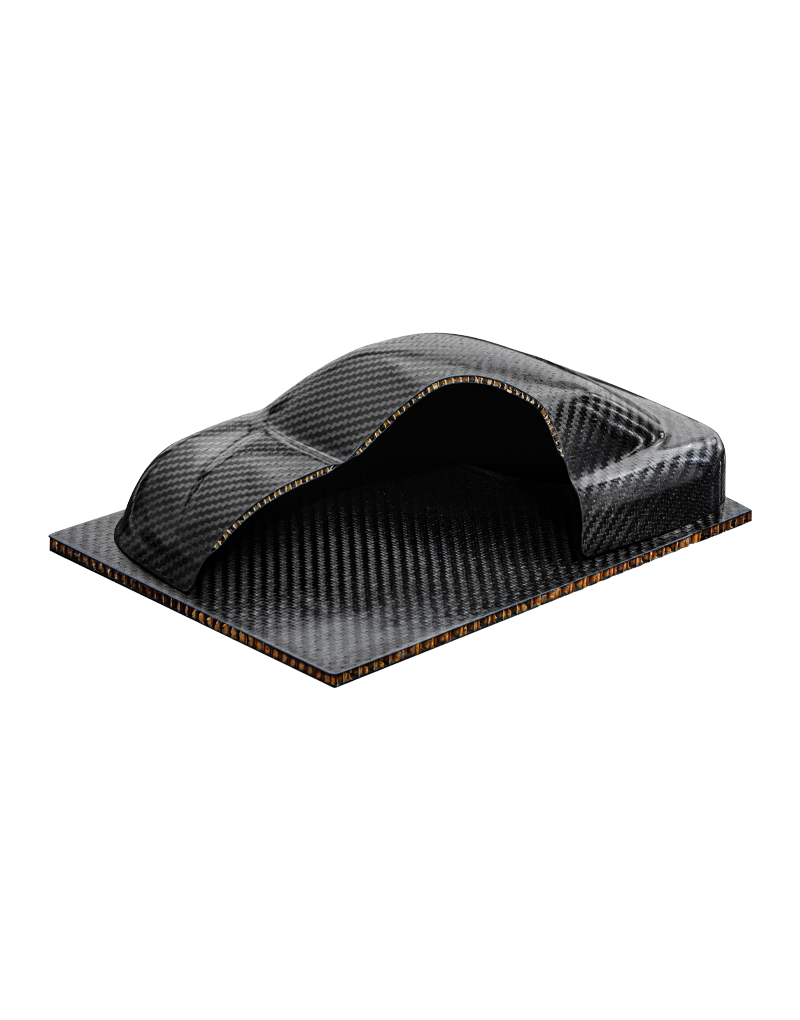

-Honeycomb core can be formed to 3D shapes easier
-Both materials can be CNC machined effectively

Waterjet Cutting

Waterjet cutting carbon honeycomb panels is possible for any client. This is a way to cut shapes from virtually any sheet material. This type of processing ensures clean cuts, consistent and high quality, and no distortion or discoloration.
